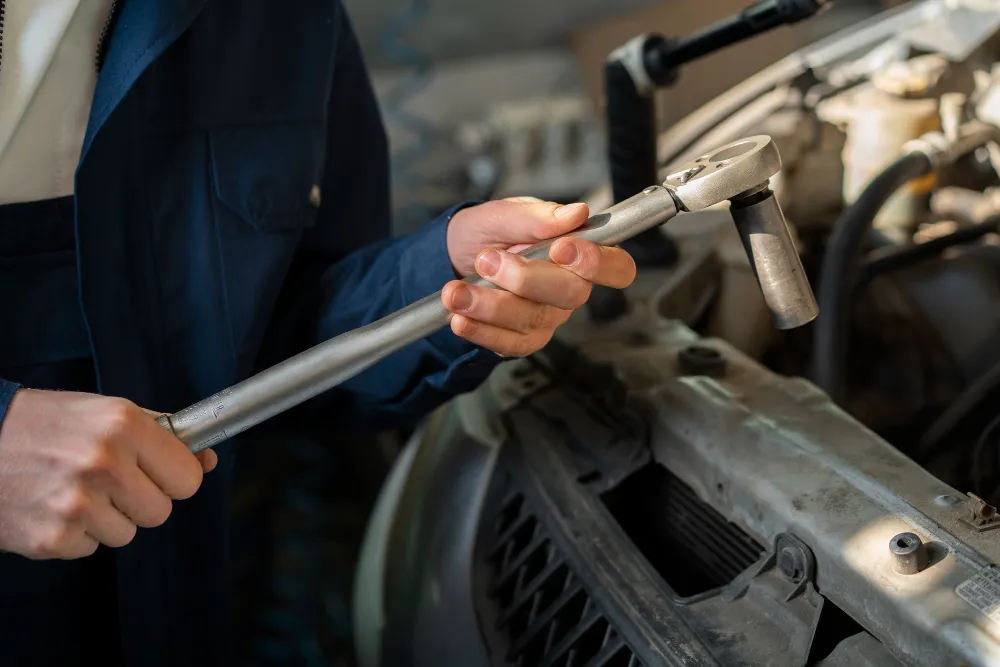

Are you a DIY enthusiast, a professional mechanic, or simply someone who wants to ensure your vehicle is maintained to the highest standards? If so, mastering the use of a torque wrench is an essential skill you’ll want to add to your toolkit. In this comprehensive guide, we’ll walk you through everything you need to know about using a torque wrench like a pro.
From understanding what a torque wrench is and why it’s crucial for your vehicle’s safety and longevity, to selecting the right type for your needs, we’ve got you covered. We’ll dive into the nitty-gritty of preparing your torque wrench, setting the correct torque value, and using it properly to achieve optimal results.
Whether you’re working on your car’s wheels, engine components, or any other part that requires precise tightening, this guide will equip you with the knowledge to tackle the job with confidence. We’ll also share some pro tips on tightening in stages and common mistakes to avoid, ensuring you get the most out of this invaluable tool.
So, grab your toolbox and get ready to torque like a professional. Let’s dive in and discover how to use a torque wrench effectively, keeping your vehicle safe, reliable, and running smoothly for years to come!
Table of Contents
What is a Torque Wrench?
A torque wrench is a specialized tool designed to apply a precise amount of torque, or rotational force, to a nut or bolt during tightening or loosening. Unlike conventional wrenches, which rely solely on the user’s strength and feel, a torque wrench measures the amount of torque applied and indicates when the desired value has been reached.
The primary purpose of a torque wrench is to ensure that fasteners are tightened to the manufacturer’s recommended torque specifications. Overtightening can cause damage to the fastener or the components it secures while under-tightening can lead to loosening and potential failure. By using a torque wrench, you can achieve the optimal clamping force, promoting safety, reliability, and longevity in various applications.
Torque wrenches come in different types, each designed for specific applications and torque ranges. The most common types include:
- Beam-style torque wrenches: These feature a long, slender beam with a pointer that moves along a scale, indicating the applied torque.
- Click-style torque wrenches: Also known as “micrometer” torque wrenches, these emit an audible click or release the handle when the desired torque is reached.
- Dial-type torque wrenches: These have a dial or gauge that displays the torque value, providing a visual indication of the applied force.
- Electronic or digital torque wrenches: These advanced tools use electronic sensors and displays to provide highly accurate torque measurements and often offer additional features like data logging and programming capabilities.
Different torque wrenches are available in various drive sizes (e.g., 1/4 inch, 3/8 inch, 1/2 inch) to accommodate different fastener sizes and torque requirements.
When to Use a Torque Wrench
A torque wrench is an essential tool for ensuring proper tightening of fasteners in numerous applications, from automotive repairs to machinery maintenance and construction projects. Using the correct torque is crucial for several reasons:
- Safety: Overtightening or under-tightening fasteners can lead to catastrophic failures, compromising the structural integrity of the component or assembly. Proper torque ensures that parts are securely fastened, reducing the risk of accidents or equipment malfunctions.
- Precision: Many mechanical systems and components require precise torque values to function correctly. For example, in automotive applications, incorrect torque on cylinder head bolts can lead to warping or cracking, resulting in costly repairs or engine failure.
- Longevity: Applying the recommended torque helps prevent premature wear, fatigue, or damage to components. Over-tightened fasteners can stretch or deform, while under-tightened fasteners may loosen over time, leading to potential failures.
- Manufacturer Specifications: Most manufacturers provide specific torque values for their products, which are determined through rigorous testing and engineering calculations. Following these specifications ensures optimal performance and adherence to warranty requirements.
Torque wrenches are essential in various industries and applications, including but not limited to:
- Automotive repairs and maintenance (engine, suspension, brakes, etc.)
- Machinery assembly and maintenance (pumps, compressors, turbines, etc.)
- Construction and structural work (bridges, buildings, pipelines, etc.)
- Aerospace and aviation maintenance
- Bicycle assembly and repair
- Firearm maintenance and repair
Whenever precise torque is required, whether for safety, performance, or warranty compliance, using a torque wrench is the recommended approach. Neglecting proper torque can lead to costly repairs, equipment downtime, and potential safety hazards.
Selecting the Right Torque Wrench
Choosing the right torque wrench is crucial for ensuring accurate and consistent torque application. There are several factors to consider when selecting a torque wrench:
Drive Size: Torque wrenches are available in various drive sizes, typically ranging from 1/4 inch to 1 inch. The drive size refers to the square opening at the end of the wrench where sockets or accessories are attached. Select a drive size that matches the fasteners you’ll be working with and the available space in your work area.
Torque Range: Torque wrenches are designed to operate within a specific torque range, which is usually indicated on the wrench or in the manufacturer’s specifications. Ensure that the torque range of the wrench covers the required torque values for your application. Using a wrench outside its designated range can lead to inaccurate readings and potential damage to the fasteners or components.
Wrench Type: Torque wrenches come in different types, including beam, dial, and click-type wrenches. Each type has its advantages and limitations:
- Beam-type wrenches are simple and easy to read but may be less accurate than other types.
- Dial-type wrenches offer high precision but require careful handling and frequent calibration.
- Click-type wrenches provide audible and tactile feedback when the desired torque is reached, making them convenient for repetitive tasks.
Consider factors like accuracy requirements, ease of use, and the nature of your work when choosing the appropriate wrench type.
Materials and Construction: Torque wrenches are available in various materials, such as steel, aluminum, or composite materials. Heavier-duty wrenches made of steel or other robust materials may be more suitable for demanding industrial applications, while lighter aluminum or composite wrenches could be preferable for automotive or general-purpose use.
Calibration and Certification: Torque wrenches require periodic calibration to maintain their accuracy. Some applications, such as in the aerospace or automotive industries, may require wrenches to be certified and traceable to national standards. Consider the calibration requirements and intervals recommended by the manufacturer or industry standards.
By considering these factors, you can select a torque wrench that meets your specific needs, ensuring accurate and reliable torque application while minimizing the risk of over-tightening or under-tightening fasteners.
Preparing the Torque Wrench
Proper preparation is crucial for accurate torque readings and preventing damage to the wrench or the fastener. Here are the key steps to prepare your torque wrench for use:
Calibrating the Torque Wrench
Most torque wrenches require periodic calibration to ensure accurate readings. Check the manufacturer’s recommendations for calibration intervals. If the wrench hasn’t been calibrated recently or has been dropped or mishandled, it’s best to have it calibrated before use.
Setting the Torque Value
Torque wrenches typically have a scale or dial to set the desired torque value. Consult the manufacturer’s specifications or the service manual for the correct torque values for the application. Carefully adjust the scale or dial to the required setting, ensuring it’s locked in place.
Attaching Sockets or Adapters
Torque wrenches are designed to work with specific socket sizes and drive types (e.g., 1/4″, 3/8″, 1/2″). Select the appropriate socket or adapter for the fastener you’ll be tightening or loosening. Ensure the socket or adapter is securely attached to the wrench’s drive before use.
Some torque wrenches have a removable ratchet head, allowing you to switch between different drive sizes. Follow the manufacturer’s instructions for properly attaching and removing the ratchet head.
Using the Torque Wrench Properly
Proper body positioning is crucial when using a torque wrench to ensure accurate readings and prevent injury. Stand with your feet shoulder-width apart and maintain a balanced stance. Avoid awkward or strained positions that could cause you to apply uneven pressure.
When tightening or loosening a fastener, make smooth, controlled turns with the torque wrench. Jerky or abrupt movements can lead to inaccurate readings and potential damage to the tool or the fastener. Apply steady pressure and allow the wrench to rotate without resistance.
Pay close attention to the gauge or display on the torque wrench. As you approach the desired torque value, slow down your movements and carefully observe the gauge. Stop turning immediately when the wrench signals that the target torque has been reached. Continuing to turn beyond this point can lead to overtightening and potential damage.
Tightening in Stages
To achieve optimal accuracy and prevent overtightening, it’s recommended to tighten fasteners in incremental stages. This process, known as “tightening in stages,” involves gradually increasing the torque applied to the fastener in multiple steps, rather than attempting to reach the final torque value in a single motion.
The typical method for tightening in stages involves the following steps:
- Initial Tightening: Begin by tightening the fastener to approximately 30-50% of the desired torque value. This initial tightening helps to seat the fastener properly and ensure even distribution of the clamping force.
- Intermediate Tightening: Next, increase the torque to about 70-80% of the target value. This step further compresses the gasket or joint materials and brings the fastener closer to its final torque specification.
- Final Tightening: In the last step, gradually increase the torque to the specified value, taking care not to overtighten. Apply the torque smoothly and consistently until the wrench clicks or the desired value is reached.
By following this incremental approach, you minimize the risk of over-tightening, which can lead to damaged threads, warped components, or excessive stress on the fastener and surrounding materials. Additionally, tightening in stages helps to distribute the clamping force evenly, ensuring a more secure and consistent joint.
It’s important to note that the specific torque values and the number of stages may vary depending on the application, the size and type of fastener, and the manufacturer’s recommendations. Always consult the appropriate technical manuals or guidelines for the specific equipment or machinery you’re working on.
Lubricating Fasteners
Proper lubrication of fasteners is crucial when using a torque wrench to achieve accurate and consistent torque readings. The friction between the threads of a bolt or nut and the corresponding threads in the hole can significantly impact the amount of torque required to tighten the fastener.
When fasteners are dry and unlubricated, the friction between the threads is higher, leading to increased torque requirements. This increased friction can cause inaccurate torque readings, as more torque is needed to overcome the resistance, resulting in overtightening or undertightening of the fastener.
By lubricating the fasteners with a suitable lubricant, such as anti-seize compounds or thread-locking fluids, the friction between the threads is reduced. This reduction in friction allows for more accurate torque readings, as less torque is required to tighten the fastener to the desired specification.
Lubricated fasteners also help prevent galling, a condition where the threads become damaged due to excessive friction and pressure. Galling can lead to seized or damaged fasteners, making them difficult or impossible to remove without causing further damage.
It’s important to note that different lubricants can affect the torque requirements differently. Always consult the manufacturer’s recommendations or industry standards for the appropriate lubricant and its impact on torque values. Applying too much or too little lubricant can also affect the accuracy of torque readings, so it’s essential to follow the recommended application procedures.
By properly lubricating fasteners, you can ensure accurate and consistent torque readings, reduce the risk of overtightening or undertightening, and extend the life of your fasteners and the components they secure.
Caring for Your Torque Wrench
Proper care and maintenance are essential to ensure the accuracy and longevity of your torque wrench. Here are some tips for caring for your torque wrench:
Proper Storage
When not in use, store your torque wrench in a dry, clean environment, away from moisture, dust, and extreme temperatures. Avoid storing it in areas with high humidity or exposure to chemicals, as these can cause corrosion and damage to the internal mechanisms.
Re-calibration Schedule
Torque wrenches can lose their accuracy over time due to wear and tear. It’s recommended to have your torque wrench re-calibrated periodically, typically every 12 months or as recommended by the manufacturer. This process involves sending the wrench to a certified calibration facility, where it will be tested and adjusted to ensure accurate torque readings.
Signs of Wear
Regularly inspect your torque wrench for signs of wear or damage. Look for cracks, dents, or other physical damage to the body or handle. Check for smooth operation of the ratchet mechanism and ensure that the scale or digital display is readable. If you notice any issues, it’s best to have the wrench serviced or replaced to maintain accuracy and safety.
Common Mistakes to Avoid
Over-tightening is one of the most common mistakes when using a torque wrench. Exceeding the recommended torque value can damage the fastener, threads, or components. Always double-check the torque specification and stop tightening when the wrench clicks or signals that the desired torque has been reached.
Using the wrong technique, such as applying the torque wrench at an angle or using excessive force, can lead to inaccurate readings and potential damage. Ensure that the torque wrench is perpendicular to the fastener and apply smooth, steady pressure.
Neglecting to re-calibrate your torque wrench regularly can result in inaccurate torque readings over time. Most manufacturers recommend calibrating the wrench annually or after any significant impact or drop. Proper calibration ensures accurate and consistent torque application.
Torque Wrench Applications
Torque wrenches are essential tools in various industries and applications where precise tightening of fasteners is crucial for safety, performance, and reliability. Here are some common examples of where torque wrenches are used:
Automotive Industry
Torque wrenches are indispensable in automotive repair and maintenance. They are used for tightening critical components such as:
- Wheel lug nuts
- Cylinder head bolts
- Crankshaft bolts
- Suspension components
- Engine mounts
Proper torque values are essential to ensure the secure attachment of these components and prevent premature failure or loosening.
Aerospace and Aviation
In the aerospace and aviation industries, torque wrenches play a vital role in ensuring the integrity of aircraft structures and components. They are used for tightening:
- Engine mounts
- Landing gear components
- Airframe fasteners
- Control surface attachments
Precise torque values are critical to maintaining the structural integrity and safety of aircraft.
Construction and Heavy Equipment
Torque wrenches are widely used in the construction and heavy equipment industries for tightening large fasteners and bolts. They are essential for:
- Assembling cranes and lifting equipment
- Tightening structural steel connections
- Securing components on excavators, bulldozers, and other heavy machinery
Proper torque values help prevent loosening, vibration, and potential failures in these demanding applications.
Industrial Machinery and Equipment
In various industrial settings, torque wrenches are used for assembling and maintaining machinery and equipment. They are employed for tightening:
- Pump and compressor components
- Gearbox and transmission fasteners
- Turbine and generator components
- Conveyor system fasteners
Accurate torque values are crucial to ensure the reliable operation and longevity of these industrial systems.
Bicycle and Motorcycle Maintenance
Torque wrenches are also commonly used in the maintenance and repair of bicycles and motorcycles. They are essential for tightening:
- Handlebar and stem components
- Crankarm and bottom bracket fasteners
- Brake and derailleur mounting bolts
- Suspension and frame fasteners
Proper torque values help prevent component damage, ensure secure attachments, and maintain the safe operation of these vehicles.
These are just a few examples of the many applications where torque wrenches are used. Precise torque control is critical in various industries to ensure safety, reliability, and optimal performance of assembled components and systems.
