Decoding the Tire Speed Rating Chart: What Every Driver Needs to Know

What is a Tire Speed Rating?

A tire speed rating is an alphanumeric code assigned to a tire that indicates the maximum sustainable speed the tire can safely handle. It represents the tire’s ability to dissipate heat at high speeds and is an essential factor in determining the tire’s overall performance and safety capabilities.

The speed rating is crucial because tires generate significant heat due to friction and flexing at high speeds. If a tire exceeds its rated speed, the excessive heat buildup can lead to tire failure, compromising vehicle control and potentially causing accidents. The speed rating ensures that the tire’s construction and materials can withstand the stresses and temperatures associated with sustained high-speed driving.

Tire speed ratings are not just a measure of top speed but also reflect the tire’s ability to maintain its structural integrity, tread life, and overall performance characteristics at various speeds. Higher speed ratings generally indicate that the tire is constructed with more robust materials and reinforcements, allowing it to handle greater stress and heat generation.

Ensuring that your vehicle’s tires have the appropriate speed rating is essential for safe and reliable performance, especially when driving at high speeds or in demanding conditions. Failure to comply with the recommended speed rating can lead to premature tire wear, blowouts, or other tire-related issues, putting the driver and passengers at risk.

Understanding the Tire Speed Rating Chart

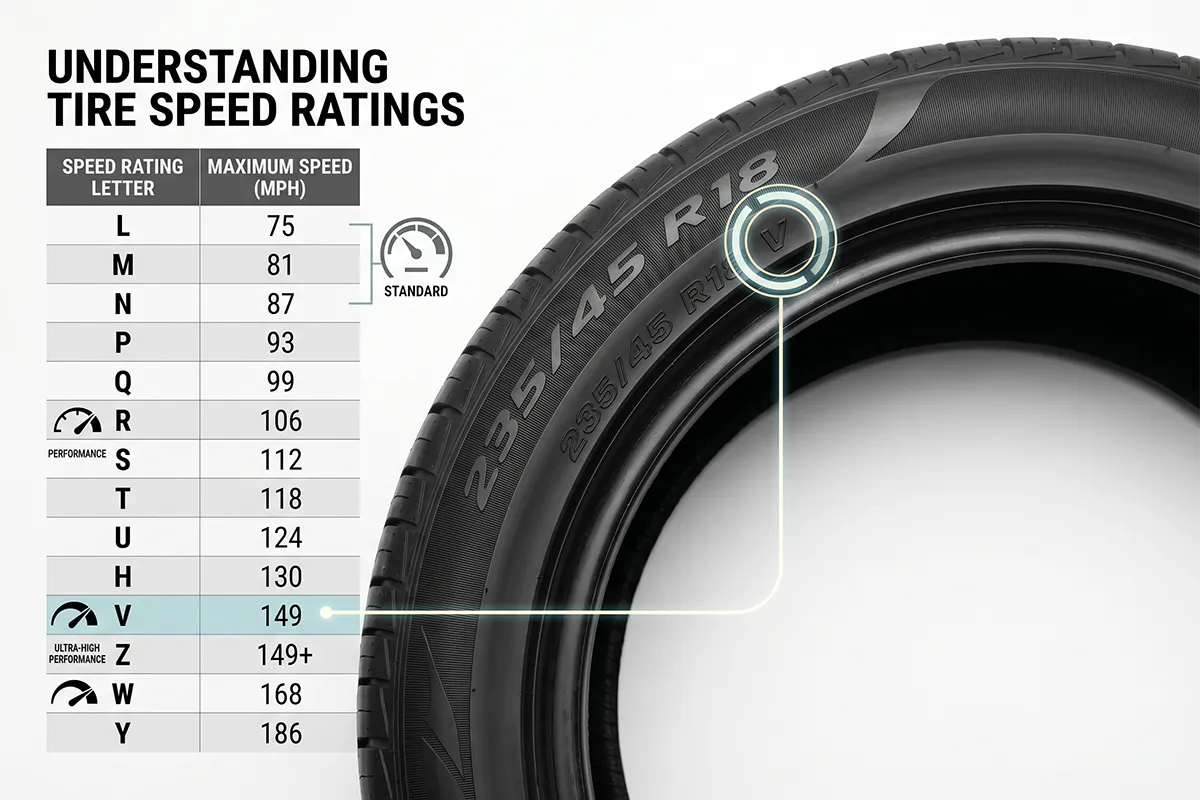

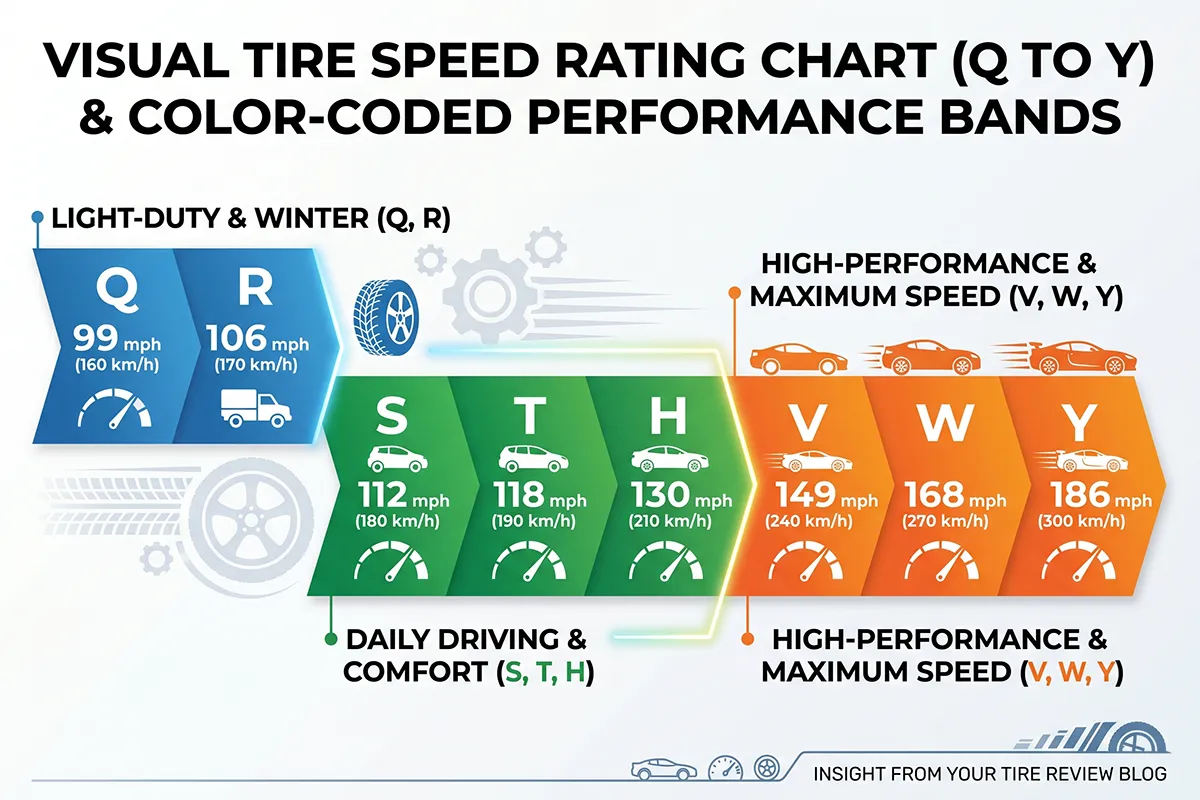

The tire speed rating chart is a simple way to understand the maximum speed capability of a tire. It uses a letter code to denote the top speed at which a tire can safely carry a load for a sustained period under ideal conditions.

The speed rating letters range from L (lowest) to Y (highest), with each letter corresponding to a specific maximum speed limit:

• L: 75 mph (120 km/h)
• M: 81 mph (130 km/h)
• N: 87 mph (140 km/h)
• P: 93 mph (150 km/h)
• Q: 99 mph (160 km/h)
• R: 106 mph (170 km/h)
• S: 112 mph (180 km/h)
• T: 118 mph (190 km/h)
• U: 124 mph (200 km/h)
• H: 130 mph (210 km/h)
• V: 149 mph (240 km/h)
• W: 168 mph (270 km/h)
• Y: 186 mph (300 km/h)

To read the chart, simply locate the letter on your tire’s sidewall and match it to the corresponding maximum speed limit. For example, if your tire is rated “H,” it can sustain speeds up to 130 mph (210 km/h). It’s crucial to respect these speed ratings and never exceed the maximum speed for your tires, as it can lead to tire failure and potentially dangerous situations.

Factors Affecting Tire Speed Rating

Tire speed rating is influenced by several factors related to the tire’s construction, materials, and design. One of the primary factors is the tire’s construction, which includes the number of plies (layers of rubber-coated fabric) and the type of materials used in the tire’s carcass and belt. Tires with more plies and reinforced construction are generally capable of higher speed ratings.

The materials used in tire construction also play a crucial role in determining the speed rating. High-performance tires often incorporate advanced compounds and materials that can withstand higher temperatures and stress generated at higher speeds. For example, silica-based tread compounds and aramid fiber belts can enhance a tire’s speed capability.

Tread design is another important factor that affects a tire’s speed rating. Tires with more aggressive tread patterns and larger tread blocks are typically designed for higher speeds, as they provide better grip and heat dissipation. However, it’s essential to strike a balance between tread design and tread life, as more aggressive tread patterns may wear out faster.

Load capacity and inflation pressure are also critical factors in determining a tire’s speed rating. Tires with higher load capacities and recommended inflation pressures are generally designed to handle higher speeds and increased stress. Proper inflation is crucial, as underinflation can lead to excessive heat buildup and potential tire failure at high speeds.

Additionally, the tire’s aspect ratio (the ratio of the sidewall height to the tread width) can influence its speed rating. Tires with lower aspect ratios (shorter sidewalls) tend to have better high-speed capabilities due to improved stability and reduced sidewall flexing.

It’s important to note that while these factors contribute to a tire’s speed rating, the overall design and engineering of the tire play a significant role in determining its maximum safe operating speed. Tire manufacturers conduct extensive testing and simulations to ensure that their tires meet the specified speed rating requirements.

Importance of Matching Tire Speed Rating to Vehicle

Matching the correct tire speed rating to your vehicle is crucial for safety and legal compliance. Using tires with an insufficient speed rating can have severe consequences, including:

1. Safety Risks: Tires with a lower speed rating than recommended for your vehicle may not be able to withstand the heat buildup and stress at higher speeds. This can lead to tire failure, such as tread separation or blowouts, which can cause loss of control and potentially catastrophic accidents.
2. Vehicle Handling and Stability: Tires with an incorrect speed rating may not provide the necessary grip, responsiveness, and handling characteristics required for your vehicle’s performance capabilities. This can result in unpredictable behavior, longer braking distances, and reduced stability, especially during emergency maneuvers or high-speed driving.
3. Legal Implications: Many regions and countries have regulations that mandate the use of tires with the appropriate speed rating for your vehicle. Using tires with a lower speed rating than required can result in fines, penalties, or legal liabilities in the event of an accident or traffic violation.
4. Warranty Implications: Manufacturers often specify the required tire speed rating for their vehicles. Using tires with an incorrect speed rating may void the vehicle’s warranty, leaving you responsible for any damages or repairs resulting from tire failure or related issues.

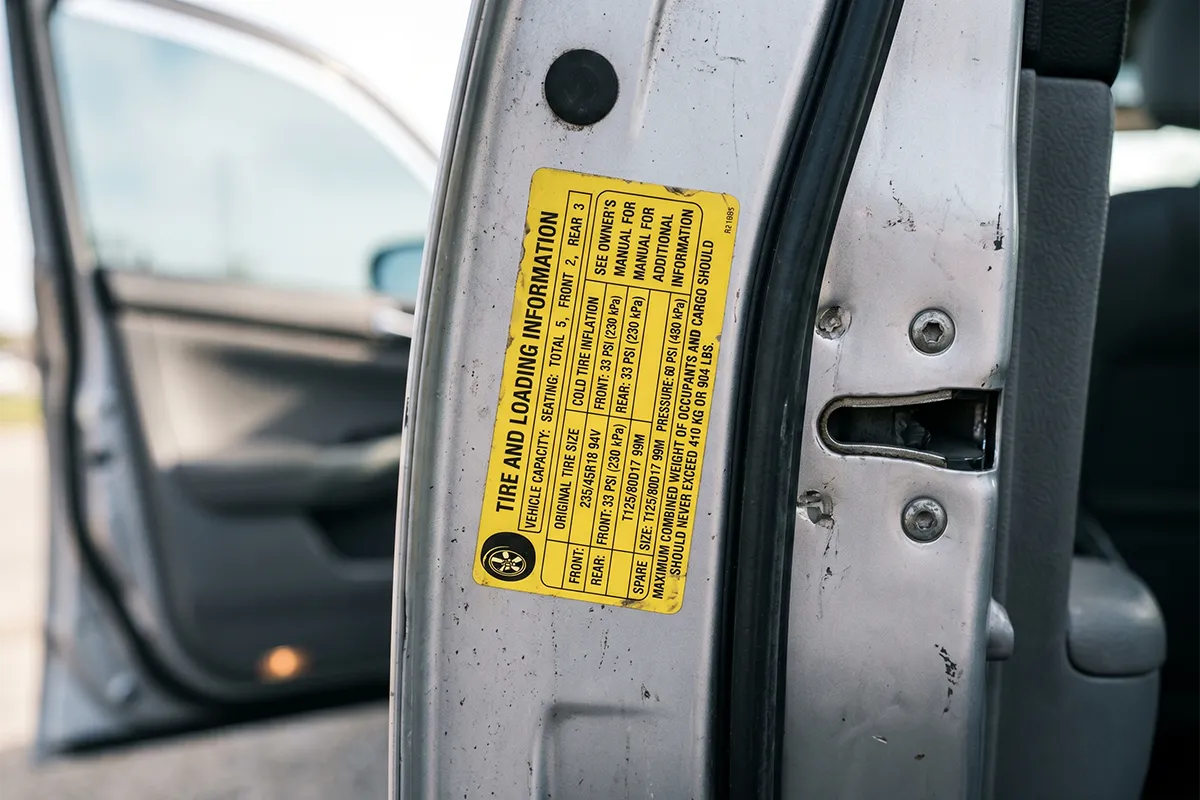

It is essential to consult your vehicle’s owner’s manual or consult with a professional tire specialist to ensure you are using tires with the correct speed rating for your specific make, model, and driving conditions. Prioritizing safety and compliance by matching the appropriate tire speed rating can prevent costly repairs, legal issues, and potentially life-threatening situations on the road.

Speed Rating and Tire Wear

The speed rating of a tire has a direct impact on its wear and tread life. Tires with higher speed ratings are designed to withstand the increased heat and stress generated at higher speeds, which can cause accelerated wear and shorter tread life.

Tires with lower speed ratings are typically made with softer and more flexible compounds, which provide better traction and grip but wear down faster, especially when driven at higher speeds. Conversely, tires with higher speed ratings are constructed with stiffer and more durable compounds that can better withstand the forces and temperatures associated with high-speed driving.

As a general rule, the higher the speed rating, the shorter the expected tread life of the tire. This is because the stiffer compounds used in high-performance tires are more resistant to wear but also generate more heat, which can lead to increased tread wear over time.

It’s important to note that even if you don’t regularly drive at the maximum speed indicated by the tire’s speed rating, the stiffer compounds used in higher-rated tires will still wear down faster than those in lower-rated tires. This means that you may need to replace your high-performance tires more frequently, even if you don’t take full advantage of their speed capabilities.

Additionally, driving habits, vehicle weight, and road conditions can also significantly impact tire wear and tread life. Aggressive driving, heavy loads, and rough or poorly maintained roads can accelerate tire wear, regardless of the speed rating.

To maximize the tread life and wear performance of your tires, it’s essential to follow the manufacturer’s recommendations for tire rotation, alignment, and inflation pressures, as well as driving within the specified speed rating for your tires.

Speed Rating and Tire Temperature

As a tire rotates, friction between the tire and the road surface generates heat. The faster a tire spins, the more heat is generated due to increased friction and flexing of the tire components. This heat buildup can have significant impacts on the tire’s performance, durability, and safety.

Tires with higher speed ratings are engineered to withstand the increased temperatures resulting from sustained high-speed driving. They typically feature specialized rubber compounds and construction methods that enhance their heat resistance and dissipation capabilities. These tires can better manage the thermal stress, reducing the risk of premature wear, tread separation, or blowouts.

Conversely, tires with lower speed ratings may not be designed to handle the extreme heat generated at higher speeds for prolonged periods. Excessive heat can cause the rubber to degrade, leading to potential tread separation, sidewall bulging, or even catastrophic failure. This is why it’s crucial to match the tire’s speed rating to the intended driving conditions and vehicle capabilities.

Proper inflation pressure and regular maintenance also play a crucial role in managing tire temperatures. Underinflated tires generate more heat due to increased flexing and friction, while overinflated tires can suffer from poor heat dissipation. Regular rotation and alignment checks help ensure even wear and minimize excessive heat buildup in specific areas of the tire.

Manufacturers conduct extensive testing to determine the maximum sustainable speeds and corresponding temperature ratings for their tires. Exceeding these ratings, even for short periods, can compromise the tire’s integrity and put the vehicle’s occupants at risk. It’s essential to respect the speed rating limitations and replace tires when they approach the end of their serviceable life to maintain optimal safety and performance.

Speed Rating and Driving Conditions

Different driving conditions can significantly impact the speed rating requirements for your tires. Here are some key considerations:

Highway Driving: For extended highway driving at high speeds, it’s crucial to have tires with a high speed rating. Tires with a lower speed rating may not be able to withstand the heat buildup and stress caused by sustained high-speed driving, increasing the risk of tire failure or premature wear.

Off-Road Driving: Off-road driving conditions, such as rocky terrain, mud, or sand, can put immense stress on your tires. While speed may not be a primary concern, tires with a higher speed rating tend to be more durable and resistant to cuts, punctures, and impact damage. However, specialized off-road tires with reinforced sidewalls and aggressive tread patterns may be more suitable for extreme off-road conditions, regardless of their speed rating.

City Driving: For city driving with frequent stops and starts, as well as lower average speeds, tires with a lower speed rating may be sufficient. However, it’s still important to ensure that the speed rating meets or exceeds the maximum speed capability of your vehicle.

Towing and Hauling: If you frequently tow trailers or haul heavy loads, consider tires with a higher speed rating. The additional weight and stress can generate more heat and increase the demands on your tires, making a higher speed rating desirable for improved durability and safety.

Inclement Weather: Driving in adverse weather conditions, such as heavy rain, snow, or ice, can reduce traction and increase the risk of hydroplaning or skidding. In these situations, it’s generally advisable to drive at lower speeds, regardless of your tire’s speed rating. However, tires with a higher speed rating may offer better wet and winter performance due to their construction and compound formulation.

Remember, the speed rating is not a recommendation for maximum driving speed but rather an indicator of the tire’s maximum speed capability under ideal conditions. Always follow posted speed limits and adjust your driving speed according to the road conditions, weather, and your vehicle’s load.

Upgrading or Downgrading Tire Speed Rating

Upgrading or downgrading the tire speed rating can have significant impacts on a vehicle’s performance, handling, and safety. When considering such a change, it’s crucial to understand the potential pros and cons.

Upgrading Tire Speed Rating

Upgrading to a higher speed-rated tire can provide several benefits:

• Improved handling and cornering stability at high speeds
• Enhanced braking performance
• Increased durability and resistance to heat buildup
• Potential for better treadwear and longer tire life

However, it’s important to note that upgrading may also have some drawbacks:

• Higher cost for the upgraded tires
• Potential for a harsher ride quality due to stiffer tire construction
• Increased rolling resistance, which can negatively impact fuel efficiency

Downgrading Tire Speed Rating

On the other hand, downgrading to a lower speed-rated tire can offer cost savings but may compromise performance and safety:

• Lower cost for the downgraded tires
• Potential for a more comfortable ride due to softer tire construction
• Reduced rolling resistance, which can improve fuel efficiency

However, the disadvantages of downgrading should be carefully considered:

• Reduced high-speed stability and handling
• Decreased braking performance, especially at higher speeds
• Increased risk of tire failure or blowout due to heat buildup
• Potential for shorter treadwear and tire life

It’s crucial to consult with a trusted tire professional and consider the specific driving conditions, vehicle specifications, and personal preferences before making any changes to the tire speed rating. Prioritizing safety and performance should be the primary concern when selecting the appropriate tires for your vehicle.

Speed Rating and Tire Warranty

Tire manufacturers typically offer warranties that cover defects in materials and workmanship for a specified period or mileage. However, it’s crucial to understand that the tire’s speed rating can impact the warranty coverage and potential claims.

If you install tires with a lower speed rating than the vehicle’s maximum speed capability, the tire warranty may be void or limited. Manufacturers design tires to withstand specific speed and temperature conditions, and using a tire with an insufficient speed rating can lead to premature wear, damage, or failure.

On the other hand, if you install tires with a higher speed rating than required for your vehicle, the warranty coverage is generally not affected. However, it’s important to note that tires with higher speed ratings may have different tread compounds or construction, which can impact factors like tread life, ride quality, and overall performance.

When making a warranty claim, the tire manufacturer may request information about your vehicle’s specifications, including the recommended speed rating. If the tires installed do not meet or exceed the vehicle’s requirements, the claim may be denied or subject to limitations.

To ensure full warranty coverage and protection, it’s essential to choose tires with a speed rating that meets or exceeds the vehicle manufacturer’s recommendations. This information is typically found in the owner’s manual or on the tire placard located in the driver’s door jamb or fuel door area.

By adhering to the recommended speed rating, you can maintain the integrity of the tire warranty and have peace of mind knowing that your tires are designed to handle the performance demands of your vehicle safely and reliably.

Speed Rating and Tire Labeling

Tire manufacturers are required to clearly label the speed rating on the tire’s sidewall to help consumers make informed decisions. This labeling is governed by regulations and standards set by organizations like the National Highway Traffic Safety Administration (NHTSA) and the Tire and Rim Association.

The speed rating is typically denoted by a letter code, such as “H” for a maximum speed of 130 mph or “V” for a maximum speed of 149 mph. This code is usually preceded by a service description, such as “MAX LOAD SINGLE” or “MAX PRESS”, and followed by the load index and other tire specifications.

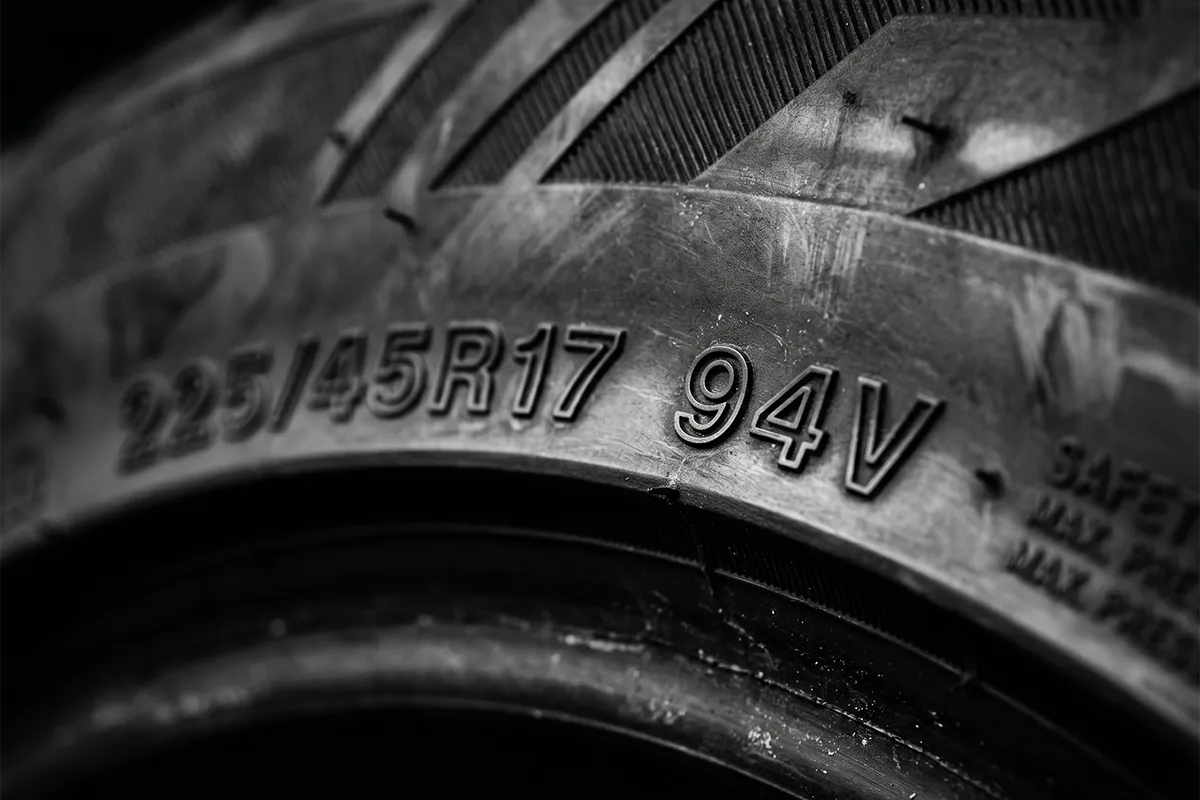

When inspecting the tire sidewall, look for the speed rating symbol, which is usually located near the tire size information. For example, a tire with the marking “P215/65R15 95H” indicates a speed rating of “H” (130 mph maximum). It’s essential to ensure that the speed rating matches or exceeds the vehicle’s maximum speed capability, as specified by the manufacturer.

Proper tire labeling and understanding the speed rating is crucial for safe driving and compliance with regulations. Manufacturers must adhere to these labeling standards to provide consumers with accurate information about the tire’s performance capabilities.

Speed Rating and Vehicle Maintenance

Maintaining the proper speed rating for your tires is crucial for safe and efficient vehicle operation. Regular tire inspections, rotations, and proper inflation are essential to ensure your tires retain their speed rating capabilities. Neglecting these maintenance tasks can lead to premature tire wear, reduced performance, and potential safety hazards.

Tire inspections should be performed regularly to check for any signs of damage, uneven wear, or tread depth issues. Uneven wear can be an indicator of improper inflation, misalignment, or suspension problems, which can compromise the tire’s speed rating. Addressing these issues promptly can help extend the life of your tires and maintain their speed rating.

Tire rotations are recommended at regular intervals, typically every 5,000 to 8,000 miles, depending on the manufacturer’s recommendations. Rotating tires helps to promote even wear across all four tires, ensuring that they maintain their speed rating capabilities consistently.

Proper tire inflation is crucial for maintaining the speed rating. Under-inflated tires can lead to excessive heat buildup, increased wear, and reduced speed rating capabilities. Over-inflated tires can cause an uncomfortable ride, reduced traction, and increased susceptibility to impact damage. Checking and adjusting tire pressures regularly, including before long trips or when carrying heavy loads, can help ensure your tires perform at their rated speed capabilities.

By adhering to a regular maintenance schedule and addressing any issues promptly, you can help ensure that your tires maintain their speed rating throughout their intended lifespan. This not only contributes to safer driving but also helps maximize the performance and longevity of your tires, ultimately saving you money in the long run.

Speed Rating and Performance Tires

Performance tires are designed to provide exceptional grip, handling, and stability at high speeds. These tires typically carry higher speed ratings, ranging from V (149 mph or 240 km/h) to Y (186 mph or 300 km/h) or even higher. High-performance tires with top speed ratings are engineered with specialized compounds, tread patterns, and construction to withstand the intense forces and heat generated during high-speed driving.

Characteristics of high-performance tires with higher speed ratings include:

• Sticky, soft compound for maximum traction and grip
• Asymmetric or directional tread patterns for enhanced cornering and water evacuation
• Reinforced internal structure to resist centrifugal forces and heat buildup
• Stiffer sidewalls for precise steering response and cornering stability

These tires are primarily designed for sports cars, high-performance sedans, and supercars that prioritize dynamic handling and driving excitement over comfort or tread life. Racing applications, such as Formula One, NASCAR, and other motorsports, often utilize tires with the highest speed ratings to handle the extreme demands of competitive racing environments.

While offering unparalleled performance, it’s important to note that high-speed rated tires may compromise ride quality and tread life compared to touring or all-season tires. Additionally, their soft compounds may require more frequent replacement due to accelerated wear, especially in less-than-ideal driving conditions.

Future Trends in Tire Speed Rating

As tire technology continues to evolve, we can expect to see advancements that may impact tire speed ratings in the future. One area of focus is the development of new materials that can withstand higher temperatures and stress levels, potentially allowing for higher speed ratings without compromising safety or durability.

Advancements in tire construction methods, such as the use of advanced reinforcement materials like aramid fibers or carbon nanotubes, could lead to tires that are stronger and more resistant to the forces generated at high speeds. Additionally, researchers are exploring the use of advanced polymers and rubber compounds that maintain their properties better under extreme conditions.

Another trend is the integration of sensors and intelligent systems into tires. These technologies could monitor factors like temperature, pressure, and wear in real-time, providing valuable data to optimize tire performance and safety at different speed ranges. Intelligent tires may even be able to adjust their characteristics dynamically based on driving conditions and speed.

Furthermore, improvements in tire design and modeling techniques, aided by computational simulations and advanced testing methods, could lead to more aerodynamic and efficient tire profiles optimized for high-speed performance.

As electric vehicles (EVs) and autonomous driving technologies become more prevalent, tire manufacturers may need to adapt their speed rating systems to accommodate the unique demands of these vehicles, such as higher torque and different weight distributions.

Overall, the future of tire speed ratings is likely to be shaped by advancements in materials science, manufacturing processes, sensor technologies, and design optimization, all aimed at enhancing safety, performance, and efficiency at higher speeds while meeting the evolving needs of the automotive industry.
